FMAR.UI.Widgets.WidgetContainer Class Reference

An object that can hold a widget. Allows the ability to move widgets around between various containers, and to lock the widget to prevent moving. More...

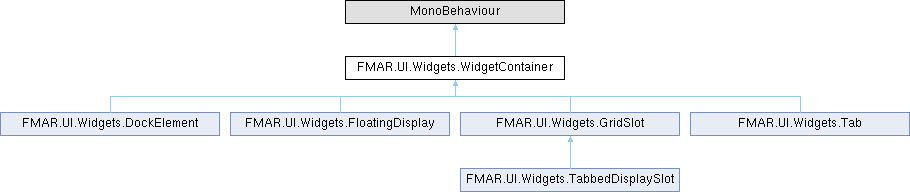

Inheritance diagram for FMAR.UI.Widgets.WidgetContainer:

Public Member Functions
virtual WidgetContainer	Init (Widget widget, Vector2 size, bool disableCollidersOverride=false, float scaleFactor=-1, bool disableInitEvent=false)
	Initializes the widget container.
void	UpdateSize (Vector2 size)
	Sets the size of the widget container.
virtual void	DetachWidget ()
	Detaches the widget from the widget container.
void	ToggleLockedState ()
	Toggles the locked state of the widget container, which determines if the widget can be removed or added.
bool	TryMove ()
	Tries to move the widget.

Protected Member Functions
virtual void	Awake ()
void	CreateBorder ()
virtual void	Update ()

Protected Attributes
Widget	widget
Vector2	size = Vector2.one
Material	borderMaterial
LineRenderer	border
bool	locked

Properties
Widget	Widget [get]
Vector2	Size [get]
float	ScaleFactor [get]
LineRenderer	Border [get]
bool	HoverLeft [get]
bool	HoverRight [get]
bool	Hover [get]
bool	Locked [get]

Events
static Action< WidgetContainer >	OnInit

Detailed Description

An object that can hold a widget. Allows the ability to move widgets around between various containers, and to lock the widget to prevent moving.

Member Function Documentation

Awake()

virtual void FMAR.UI.Widgets.WidgetContainer.Awake ( )

inlineprotectedvirtual

Reimplemented in FMAR.UI.Widgets.Tab.

CreateBorder()

void FMAR.UI.Widgets.WidgetContainer.CreateBorder ( )

inlineprotected

DetachWidget()

virtual void FMAR.UI.Widgets.WidgetContainer.DetachWidget ( )

inlinevirtual

Detaches the widget from the widget container.

Reimplemented in FMAR.UI.Widgets.FloatingDisplay, FMAR.UI.Widgets.GridSlot, and FMAR.UI.Widgets.TabbedDisplaySlot.

Init()

virtual WidgetContainer FMAR.UI.Widgets.WidgetContainer.Init ( Widget widget, Vector2 size, bool disableCollidersOverride = false, float scaleFactor = -1, bool disableInitEvent = false )

inlinevirtual

Initializes the widget container.

Parameters

widget	The widget to place into the widget container.
size	The size of the widget container.
disableCollidersOverride	Whether to disable the colliders.
scaleFactor	The scale factor to use.
disableInitEvent	Whether to disable the init event.

Returns

This widget container.

Reimplemented in FMAR.UI.Widgets.GridSlot, and FMAR.UI.Widgets.TabbedDisplaySlot.

ToggleLockedState()

void FMAR.UI.Widgets.WidgetContainer.ToggleLockedState ( )

inline

Toggles the locked state of the widget container, which determines if the widget can be removed or added.

TryMove()

bool FMAR.UI.Widgets.WidgetContainer.TryMove ( )

inline

Tries to move the widget.

Returns

Whether or not the widget was moved. If the widget container is locked, will return false.

Update()

virtual void FMAR.UI.Widgets.WidgetContainer.Update ( )

inlineprotectedvirtual

Reimplemented in FMAR.UI.Widgets.FloatingDisplay.

UpdateSize()

void FMAR.UI.Widgets.WidgetContainer.UpdateSize ( Vector2 size )

inline

Sets the size of the widget container.

Parameters

size	The new size of the widget container.

Member Data Documentation

border

LineRenderer FMAR.UI.Widgets.WidgetContainer.border

protected

borderMaterial

Material FMAR.UI.Widgets.WidgetContainer.borderMaterial

protected

locked

bool FMAR.UI.Widgets.WidgetContainer.locked

protected

size

Vector2 FMAR.UI.Widgets.WidgetContainer.size = Vector2.one

protected

widget

Widget FMAR.UI.Widgets.WidgetContainer.widget

protected

Property Documentation

Border

LineRenderer FMAR.UI.Widgets.WidgetContainer.Border

get

Hover

bool FMAR.UI.Widgets.WidgetContainer.Hover

get

HoverLeft

bool FMAR.UI.Widgets.WidgetContainer.HoverLeft

get

HoverRight

bool FMAR.UI.Widgets.WidgetContainer.HoverRight

get

Locked

bool FMAR.UI.Widgets.WidgetContainer.Locked

get

ScaleFactor

float FMAR.UI.Widgets.WidgetContainer.ScaleFactor

get

Size

Vector2 FMAR.UI.Widgets.WidgetContainer.Size

get

Widget

Widget FMAR.UI.Widgets.WidgetContainer.Widget

get

Event Documentation

OnInit

Action<WidgetContainer> FMAR.UI.Widgets.WidgetContainer.OnInit

static

---

The documentation for this class was generated from the following file:

• /github/workspace/Packages/FMAR/UI/Widgets/Runtime/Scripts/WidgetContainer.cs
