AnchorProvider Class Reference

Abstract base class for any system which allows the creation and management of anchors in the environment. This is required as different platforms have different ways of handling anchors. It allows us to abstract away the differences and provide a unified interface for the rest of the system. More...

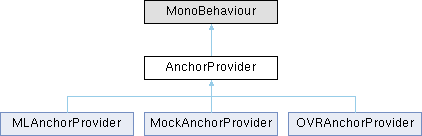

Inheritance diagram for AnchorProvider:

Public Member Functions
void	CreateAnchor (Pose pose, Action< string > OnCompleted=null)
	Creates an anchor at the specified pose.
void	DestroyAnchor (string id)
	Destroys the anchor with the specified ID.
bool	TryGetAnchor (string id, out FMARAnchor anchor)
	Tries to get the anchor with the specified ID.
bool	TryGetClosestAnchor (Vector3 position, float radius, out FMARAnchor anchor)
	Tries to get the closest anchor to the specified position within a given radius.
FMARAnchor[]	GetAllAnchors ()
	Gets all anchors managed by the provider.
virtual void	Awake ()
	Initializes the singleton instance of the anchor provider.
virtual void	OnDestroy ()
	Cleans up the singleton instance when the provider is destroyed.

Static Public Attributes
static Action	OnAnchorsUpdated
static Action	OnAnchorAdded
static Action	OnAnchorRemoved

Properties
static AnchorProvider	Instance [get]
bool	Ready [get]
	Gets a value indicating whether the provider is ready to create and manage anchors.

Detailed Description

Abstract base class for any system which allows the creation and management of anchors in the environment. This is required as different platforms have different ways of handling anchors. It allows us to abstract away the differences and provide a unified interface for the rest of the system.

Member Function Documentation

Awake()

virtual void AnchorProvider.Awake ( )

inlinevirtual

Initializes the singleton instance of the anchor provider.

Reimplemented in MockAnchorProvider, and OVRAnchorProvider.

CreateAnchor()

void AnchorProvider.CreateAnchor ( Pose pose, Action< string > OnCompleted = null )

abstract

Creates an anchor at the specified pose.

Parameters

pose	The pose where the anchor should be created.
OnCompleted	Callback invoked when the anchor creation is completed.

DestroyAnchor()

void AnchorProvider.DestroyAnchor ( string id )

abstract

Destroys the anchor with the specified ID.

Parameters

id	The ID of the anchor to destroy.

GetAllAnchors()

FMARAnchor[] AnchorProvider.GetAllAnchors ( )

abstract

Gets all anchors managed by the provider.

Returns

An array of all anchors.

OnDestroy()

virtual void AnchorProvider.OnDestroy ( )

inlinevirtual

Cleans up the singleton instance when the provider is destroyed.

TryGetAnchor()

bool AnchorProvider.TryGetAnchor ( string id, out FMARAnchor anchor )

abstract

Tries to get the anchor with the specified ID.

Parameters

id	The ID of the anchor to retrieve.
anchor	The retrieved anchor, if found.

Returns

True if the anchor was found; otherwise, false.

TryGetClosestAnchor()

bool AnchorProvider.TryGetClosestAnchor ( Vector3 position, float radius, out FMARAnchor anchor )

abstract

Tries to get the closest anchor to the specified position within a given radius.

Parameters

position	The position to search from.
radius	The search radius.
anchor	The closest anchor, if found.

Returns

True if an anchor was found; otherwise, false.

Member Data Documentation

OnAnchorAdded

Action AnchorProvider.OnAnchorAdded

static

OnAnchorRemoved

Action AnchorProvider.OnAnchorRemoved

static

OnAnchorsUpdated

Action AnchorProvider.OnAnchorsUpdated

static

Property Documentation

Instance

AnchorProvider AnchorProvider.Instance

staticget

Ready

bool AnchorProvider.Ready

getabstract

Gets a value indicating whether the provider is ready to create and manage anchors.

---

The documentation for this class was generated from the following file:

• /github/workspace/Packages/FMAR/Core/Runtime/Scripts/AnchorProvider.cs
